Online pH, DO, Salinity and ORP for aquaculture

1. Product Information

-Equipment for monitoring pH, DO, Salinity, ORP for aquaculture.

-Monitor remote targets via phone or computer.

-Remote alert threshold set by: SMS / Email.

-Choice of on / off control devices, remote electric motors.

-Products are designed by Tesla Technological Company of Vietnam with warranty of 12 months with the screen and communication equipment, 12 months with the sensor (consumables).

2. Specifications

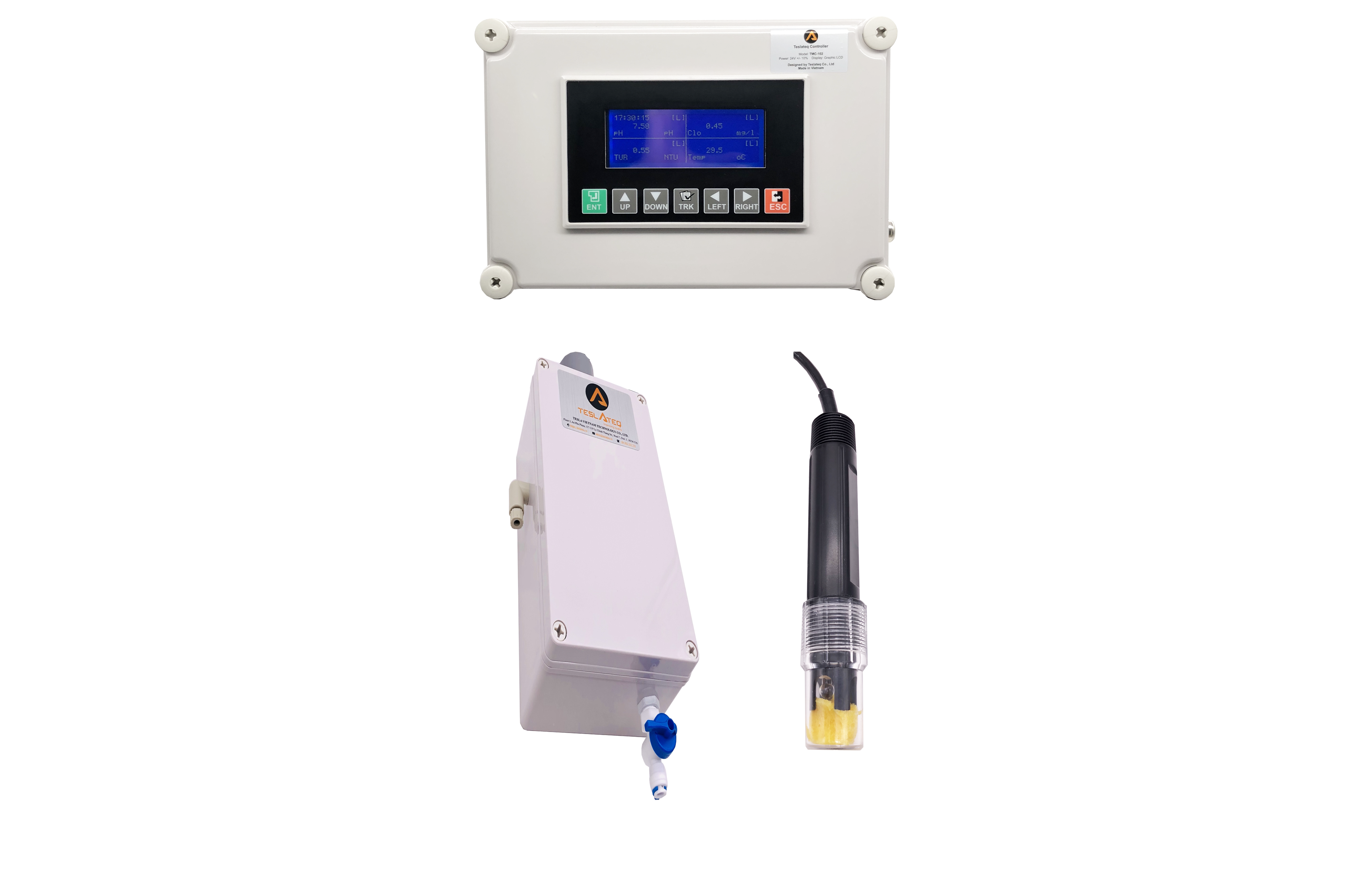

a. pH online

TPS103 Series of online pH sensor, desulfurization of pH measurement of pH electrode is used for flue gas desulfurization, the electrode adopts the gel electrode, free maintenance, electrode under high temperature or high pH can still maintain high precision.

Features

Range: 0 – 14 pH

Temperature: 0 – 50 oC

Built in temperature sensor, real-time temperature compensation;

High and low alarm: set-up high and low alarm via relay output.

Waterproof and dust-proof: good sealing instrument.

Multi-screen display: There are four kinds of sensors can connect to display, user-friendly display for
the different requirements;

pH calibration: provide slope calibration, clear menu design.

Completed system ready to use.


     Download Datasheet

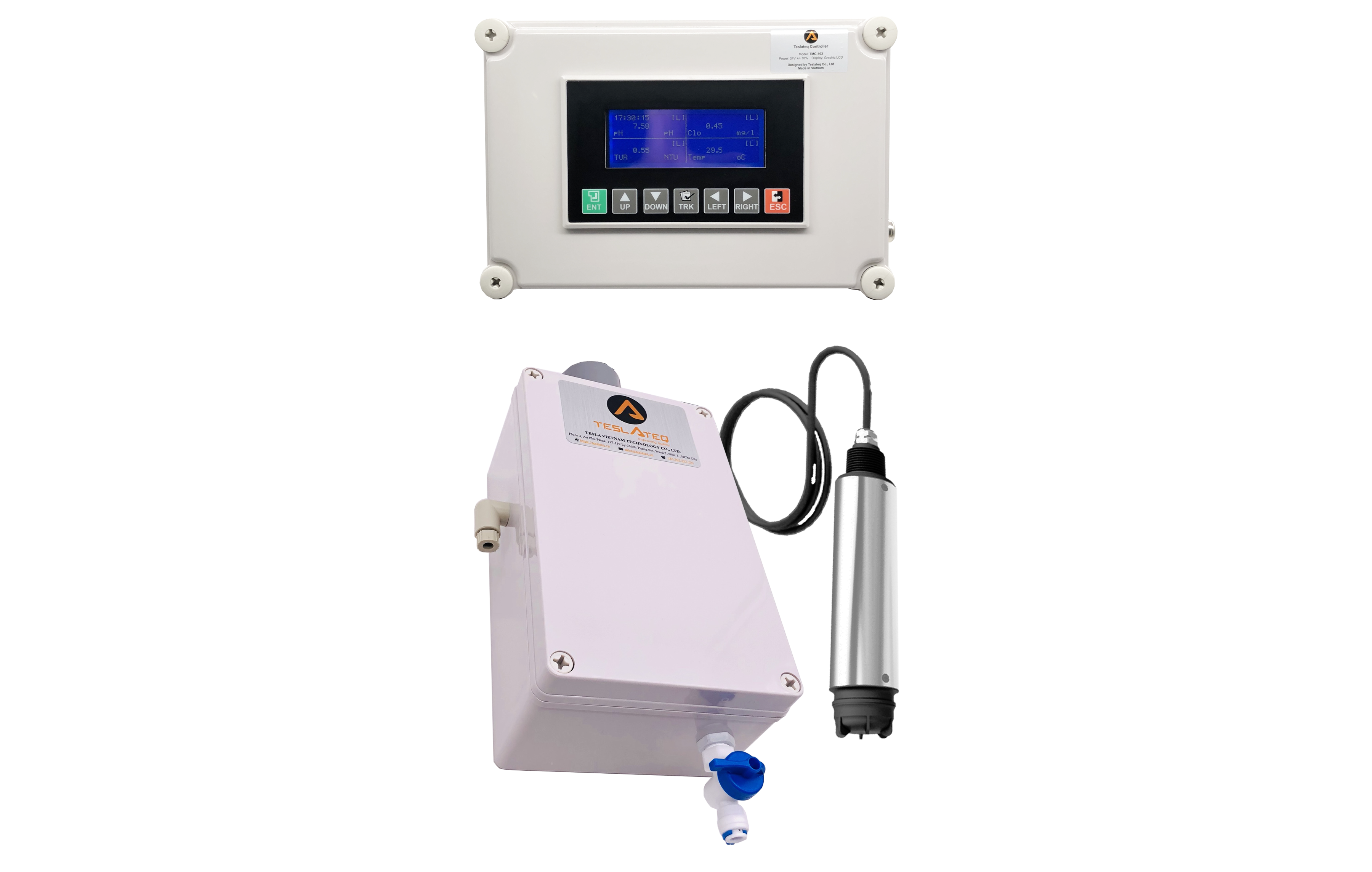

b. DO online

TDO101 series online dissolved oxygen Sensor by the optical method. The fluorescent substance is stimulated to emit red light, and the oxygen concentration is inversely proportional to the time when the fluorescent substance returns to the ground state. By using this method to measure the dissolved oxygen, it will not produce oxygen consumption, thus assuring data stability, reliable performance, no interference, and simple installation and calibration.

Features

• Range: 0 – 20 ppm (mg/L); 0 – 45 ºC;

• The on-line dissolved oxygen Sensor by the optical method can work stably for a long time.

• Built-in temperature sensor, real-time temperature compensation.

• High and low alarm: set-up high and low alarm via relay output.

• Waterproof rate: IP68/NEMA6P.

• Accessories: integrated in chamber/tank.

• Multi-screen display: There are four kinds of sensors can connect to display, user-friendly display for
the different requirements;

• DO calibration: provide slope calibration.

• Completed system ready to use.

    Download Datasheet



c. Salinity online

TSA101 series of online Salinity Sensor, in the interior of the Sensors achieve the automatic temperature compensation, digital signal conversion and other functions. With rapid response, low maintenance cost, real-time online measurement characters etc.

Features

• Range: 0 – 70 ppt (g/L).

• Can work stably for a long time.

• Built in temperature sensor, range 0 – 50 ºC.

• High and low alarm: set-up high and low alarm via relay output.

• Waterproof and dust-proof: good sealing instrument.

• Multi-screen display: There are four kinds of sensors can connect to display, user-friendly display for the different requirements.

• Salinity calibration: provide slope calibration.

• Completed system ready to use.



d. ORP online

TRES101 Series of online ORP Sensor, realizes the automatic temperature compensation in the interior of the sensors. High precision, good stability, long lifetime, with rapid response, low maintenance cost, real-time online measurement characters etc...

Features

• Range: -1999~+1999 mV

• Temperature: 0 – 50 oC

• Built in temperature sensor, real-time temperature compensation;

• High and low alarm: set-up high and low alarm via relay output.

• Waterproof and dust-proof: good sealing instrument.

• Multi-screen display: There are four kinds of sensors can connect to display, user-friendly display for
the different requirements;

• ORP calibration: provide slope calibration.

• Completed system ready to use.


     Download Datasheet

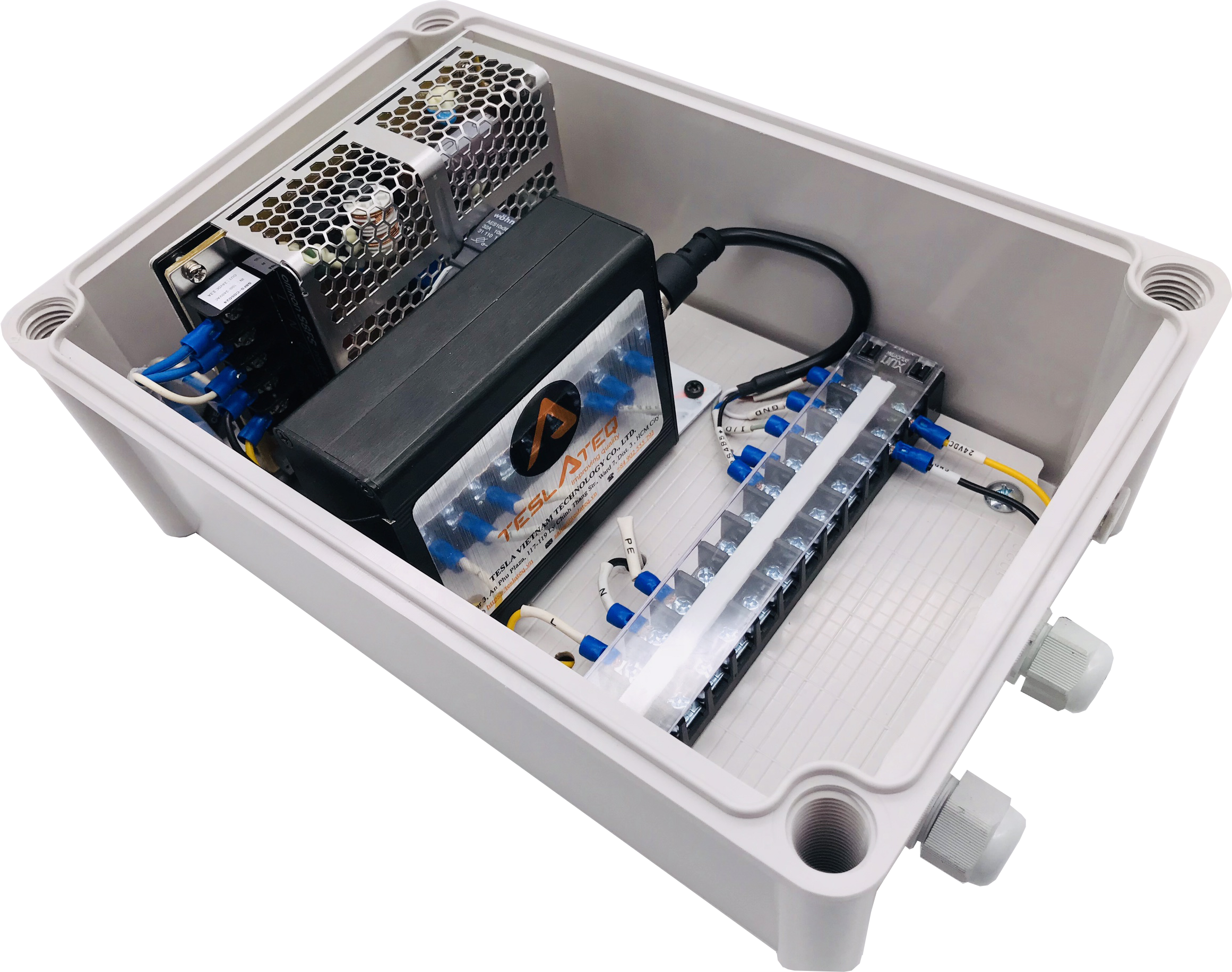

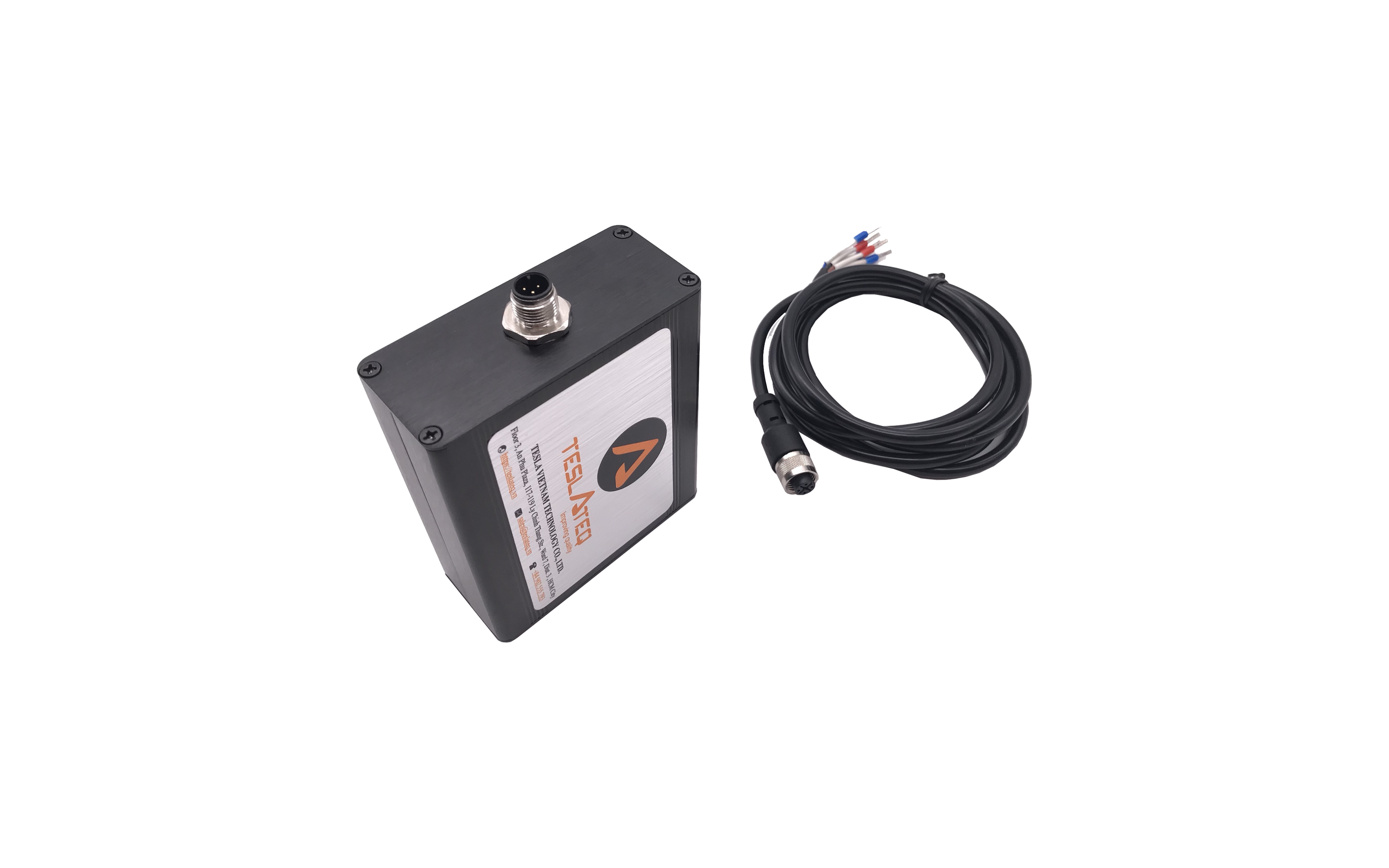

e. Data communications for external installation


  Download Datasheet


3. Scope and scope of application


To monitor water quality indicators in aquaculture and aquaculture environment.

Range of application in aquatic breeding environment, industrial breeding, hatchery.


4. Practical needs

Why pH, DO, Salinity, Temperature, ORP?


Effect of pH.

Actually, the pH of the water can range from 0 to 14. Shrimp and farmed fish have better health and production efficiency when the pH value of water varies from 7.5 to 8.5, when the values This is consistent with their blood pH. Excess pH values will reduce feeding, reduce growth, adversely affect FCR and inhibit the immune response of shrimp and fish.


Alkalinity is a measure of the ability to keep the pH stable and is measured in units of mg / l CaCO 3 . Alkalinity of shrimp pond should be in the range of 100 - 150 mg / l. High alkalinity, pH less fluctuate. Low alkalinity, the pH changes sharply, disadvantage for shrimp. Alkalinity is very easy to change, so check the alkalinity every 3-5 days.


Effect of salinity.

High salinity will change some environmental parameters such as pH, alkalinity. In addition, the algae in the shrimp growing rapidly, producing more toxic gas ... In particular, the source of oxygen in the water will increase sharply during the day, but reduced at night. At that time, the environment will be lacking in oxygen, leading to the shrimps emerging at midnight.


Salinity for shrimp and white shrimp is 5 - 35 (‰ - thousands). However, currently cultured white shrimp is recommended at 5% salinity to reduce the risk of hepatopancreas disease.


Effect of dissolved oxygen.

Dissolved oxygen is oxygen for aquatic animals. Shrimp aquaculture should ensure dissolved oxygen> 3.5 mg / l, but optimum> 5 mg / l.

Provides oxygen needed for aquatic animal life.

It is beneficial for the development of aerobic microorganisms, promote the resolution of organic matter.

Reduced toxic effects.

To inhibit the activity of harmful anaerobic organisms.

Strengthen immunity.


Effect of temperature.

Heat affects the growth and survival rate of shrimp. The best temperature for shrimp is 26 - 32 ° C. Pay attention when the temperature rises above 32 ° C. At 35 ° C, 100% of shrimp under one month of age die; At 40 ° C all shrimp will die. Low temperature will slow down the shrimp.


Effect of sulfur hydrogen.

Hydrogen sulphide is very toxic to shrimp, fish, animals, including humans. H 2 S formed by the anaerobic digestion of waste feed, herbicide and animal waste, or from sulfate ions by reducing Suynphat bacteria. The black-bottomed mud and the rotten egg odor are due to the presence of H 2 S. The alkaline earth ponds are at risk for high levels of Hydrogen Suynphua.


Prawns prefer to live near the mud, so the accumulation of H 2 S in the bottom mud and the bottom water layer greatly affect. Shrimp fatigue when H 2 S 0.1-0.2 mg / l; slowly die and sink to the bottom when the concentration of H 2 S in the bottom water is 0.9 mg / l, although high oxygen; and died instantly when H 2 S to 4 mg / l.


According to TCVN for shrimp culture water, the free sulfur H 2 S should not exceed 0.05 mg / l.


Effect of Ammonia.

Ammonium is toxic to shrimp. The actual test showed that NH 3 0.45 mg / L reduced the speed by 50%. According to ISO, free ammonia concentration NH 3 domestic shrimp is not exceeding 0.3 mg / l, but the optimal level of 0.1 mg / l.


Effects of nitrite.

Nitrit NO 2 - toxic to shrimp, fish. Nitrites penetrate the body of fish through the gills and skin. Nitrite works with blood, making the oxygen transport in the body difficult, becomes softer, slower, more susceptible to illness and even death. In particular, fish are very sensitive to nitrite. The nitrite limit for shrimp ponds is 1 mg / l NO 2 - (or 0.3 mg / l NO 2 - / N).


5. Specification.

-Direct monitoring of pH, DO, 24/24 salinity at shrimp pond.

-Can read, read pH, DO, Salinity at the scene through the display or can be monitored remotely by phone.

-Can synthesize data, pH parameters, DO, Salinity to form charts with up to 1 year.

-Can be controlled remotely by phone or automatically controlled according to the preset threshold.

-Set thresholds for each indicator and alerts via email or SMS.

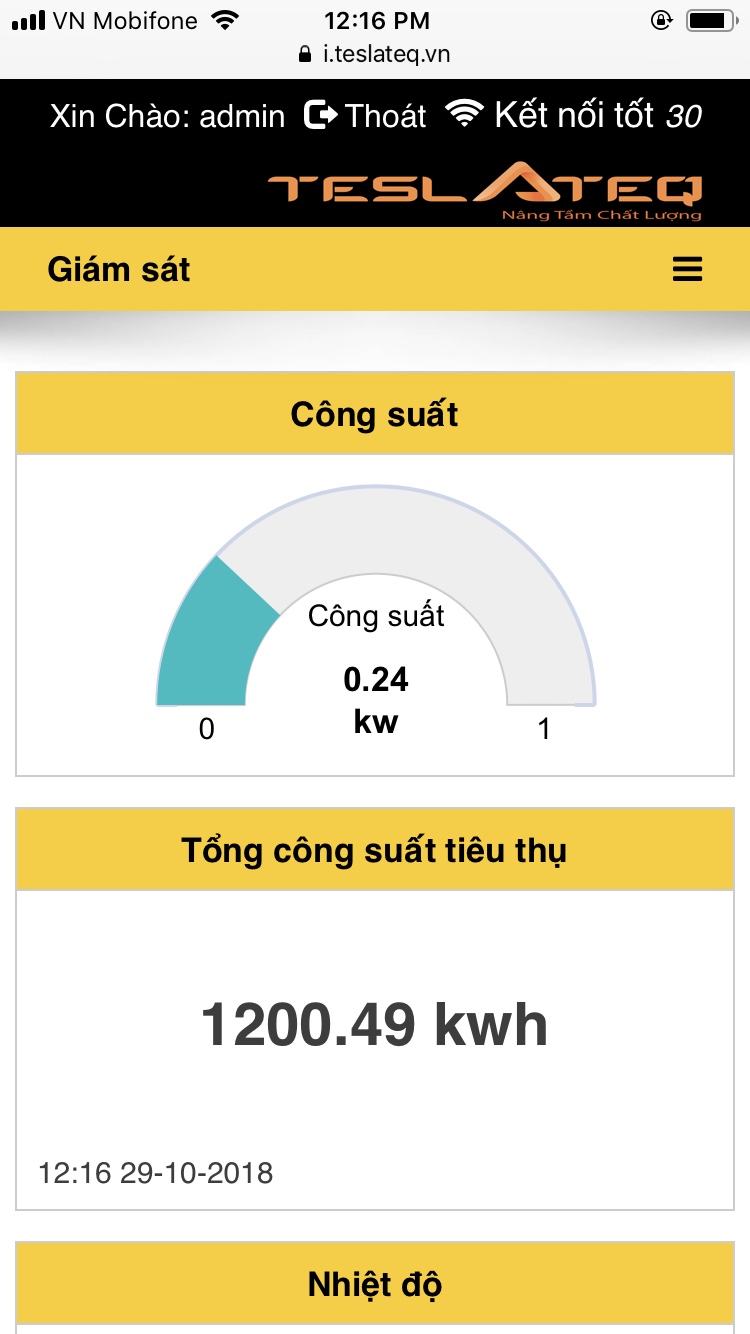

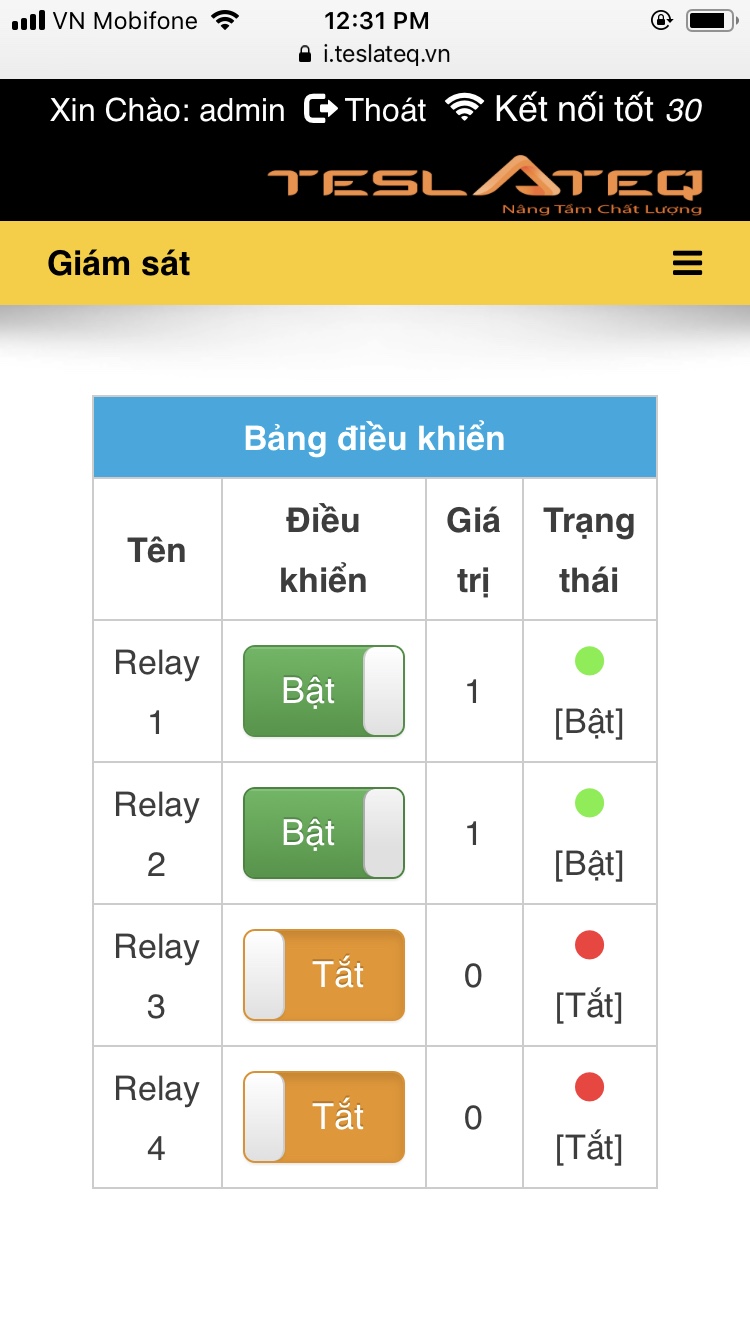

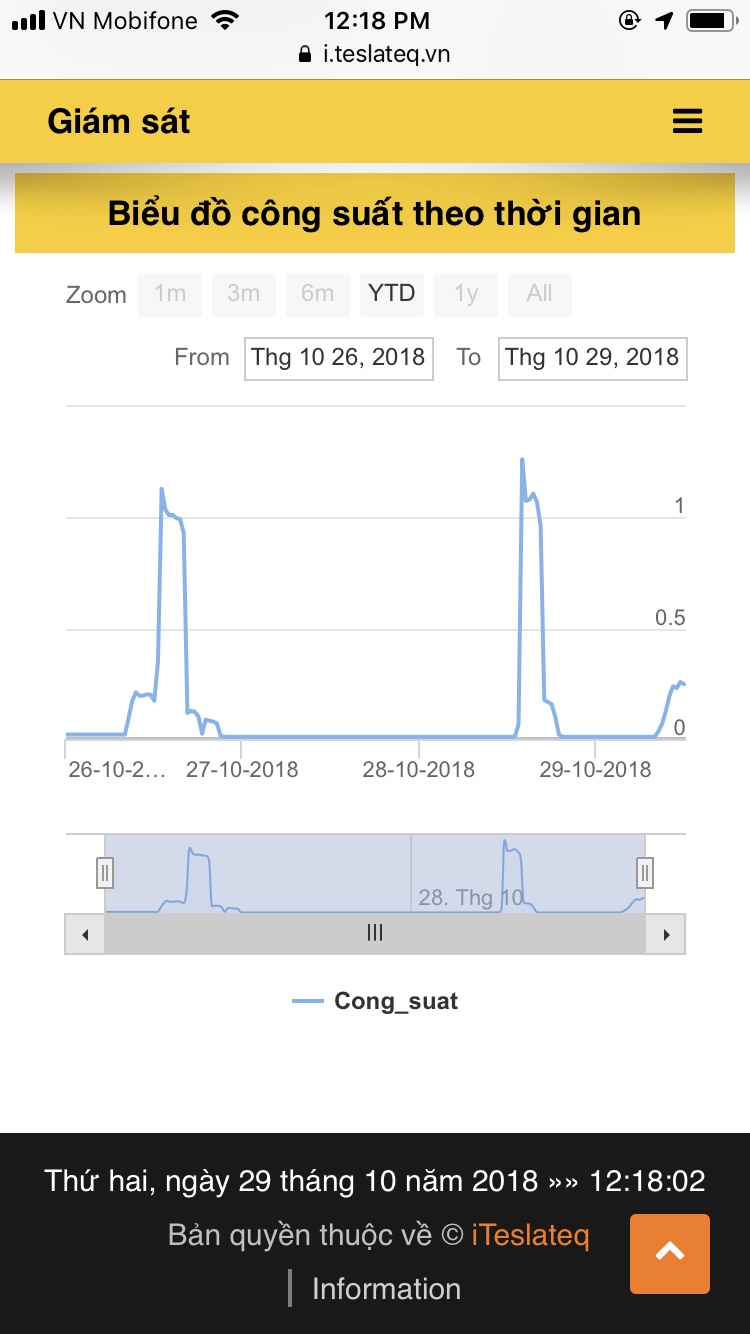

6. Monitor interface on the phone.

-Phone monitoring interface, which can be monitored and controlled back to the field with optional options.

-Good interface on both iOS and Android platforms.
