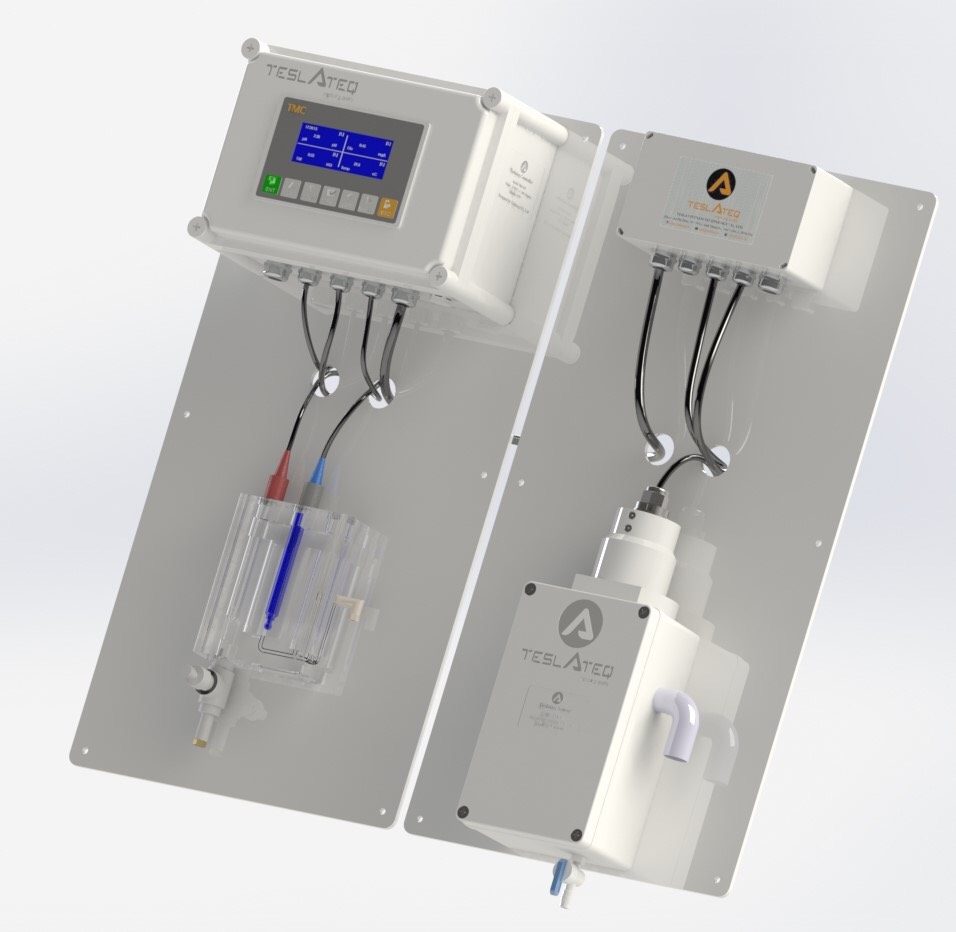

pH, Chlorine and Turbidity online TMC102 + TPS101 + TCO101 + TTS101

pH, Chlorine and Turbidity online TMC102 + TPS101 + TCO101 + TTS101

TPS101 Series of online pH sensor for cleaning pro, fresh water, realizes the automatic temperature compensation in the interior of the sensors. High precision, good stability, long lifetime, with rapid response, low maintenance cost, real-time online measurement characters etc


Features

Range: 0 – 14 pH

Temperature: 0 – 50 oC

Built in temperature sensor, real-time temperature compensation;

High and low alarm: set-up high and low alarm via relay output.

Waterproof and dust-proof: good sealing instrument.

Accessories: integrated flowcell for electrode pH.

Multi-screen display: There are four kinds of sensors can connect to display, user-friendly display for
the different requirements;

pH calibration: provide slope calibration, clear menu design.

Completed system ready to use.


TCO101 is a new industrial residual chlorine sensor, with high intelligence, sensitivity. It can measure residual chlorine and temperature simultaneously. It is widely used in such industries as thermal power plant, running water, pharmaceutical, drinking water, water purification, industrial pure water, swimming pool disinfection residual chlorine continuous monitoring.


Features

·   Highly intelligent: TCO101 Industrial online residual chlorine sensor adopts industry leading overall design concept of the core components to ensure high-quality, export instruments.

·   Advantage features: without membrane, without standard solution and without reagent.

· High and low alarm: set-up high and low alarm via relay output.

·   Waterproof and dust-proof: good sealing instrument.

·   Accessories: integrated flowcell for electrode chlorine.

·   Multi-screen display: There are six kinds of sensors can connect to display, user-friendly display for
the different requirements;

·   Chlorine calibration: provide slope calibration, clear menu design.

·   pH integrated sensor (options). Model: TPS101.

.   Completed system ready to use


TTS101/TTS102 turbidity sensor light scattering method ISO 7027 based on combination of infrared absorption, infrared light emitted by the light source after the scattering of turbidity in the sample. Finally, by the photodetector conversion value of electrical signals, and obtaining the turbidity of the sample after the analogue and digital signal processing.


Features

The sensor adopts double beam infrared scattering spectrophotometer detection technology, with good repeatability and stability.


The application of ISO7027 standard methods (infrared light scattering technique) can eliminate the influence of the sample colour.

Equipped with self, diagnosis function, to ensure accurate data.


Optional cleaning brush with an automatic cleaning function, greatly reduce the maintenance times of sensor.

The sensor has the advantages of convenient installation, plug and play.

Multi-screen display: There are 04 kinds of sensors can connect to display, user-friendly display for
the different requirements;

Completed system ready to use.



    Download pH Datasheet


     Download Chlorine Datasheet


   Download Turbidity Datasheet

   Table Modbus RTU Communication
