Klay Instruments
Series 1 2 4 1
Intelligent Pressure Transmitter 4000 with metallic diaphragm

Intelligent Pressure Transmitter 4000 with metallic diaphragm

The all stainless series 4000 pressure transmitter has a flush diaphragm. Suitable for vacuum and pressure measurement on liquids and gasses. This microprocessor based transmitter can easily be programmed using the unique programming button and display. Absolute and relative pressure measurement of gas and liquids. Because of the flush diaphragm very suitable for liquids which can cause clogging like pulp, paper and starch. For the pulp and paper industry, specific process connections are available.



Features


. All stainless steel housing

. Adjustable with programming button, without test pressure

. Graphic display with backlight

. Local indicator (option)

. All current process connections

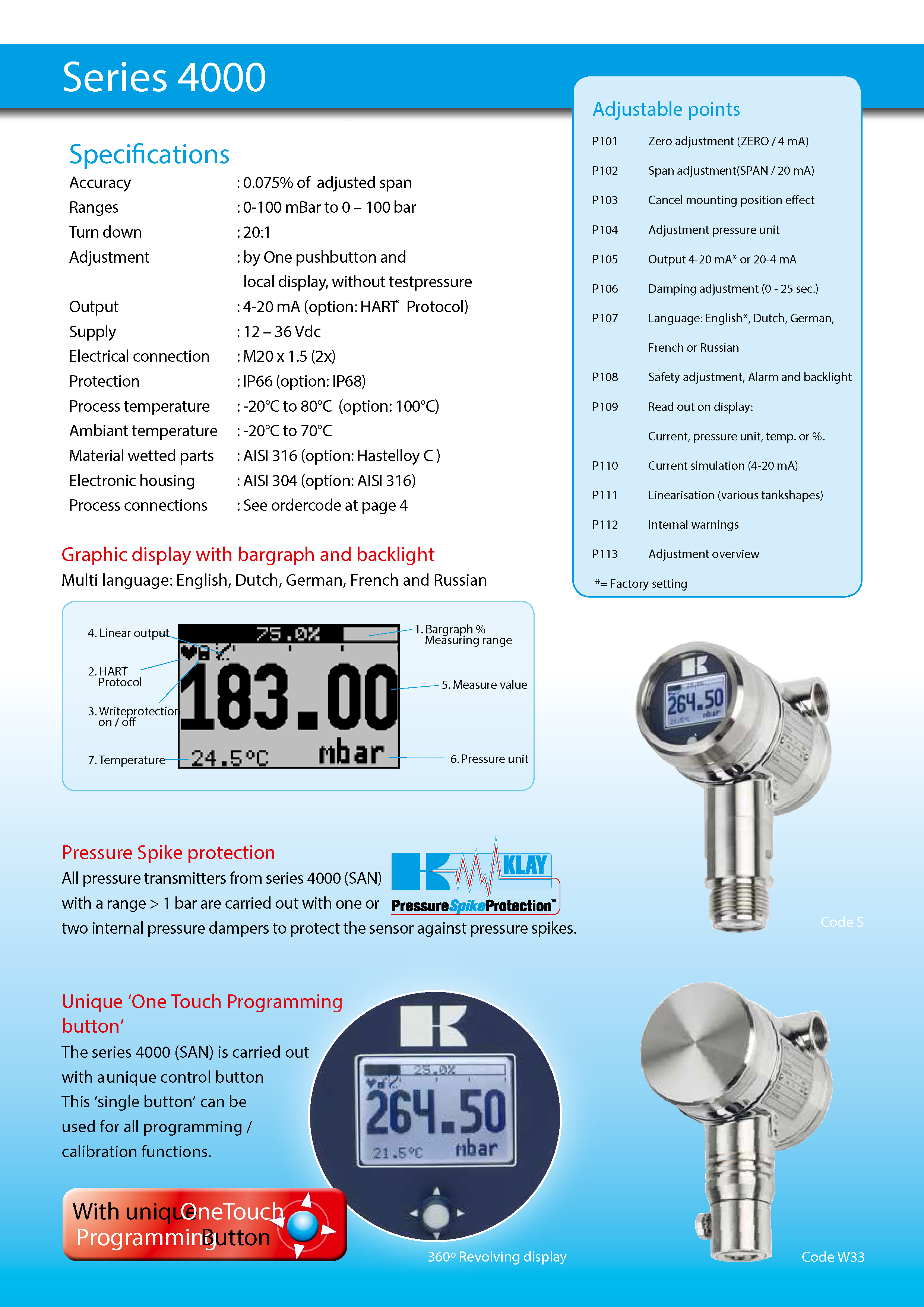

   Download Datasheet
