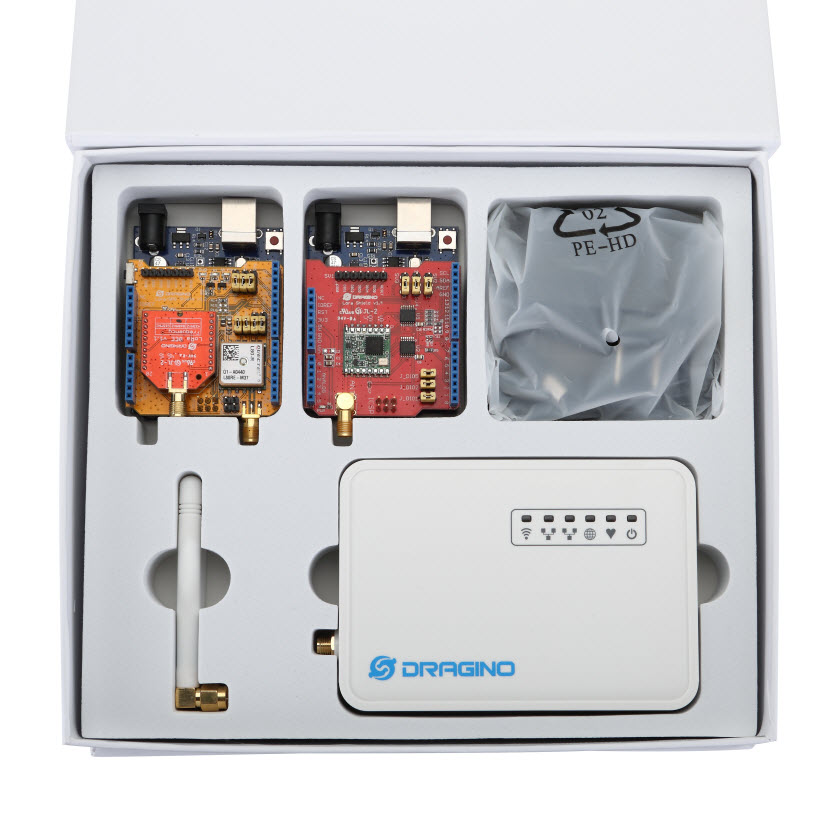

IoT Development Kit featuring LoRa® technology
Dragino IoT Kit featuring LoRa® technology is designed to facilitate beginners and developers to quickly learn LoRa and IoT technology. It help users to turn the idea into a practical application and make the Internet of Things a reality. It is easy to program, create and connect your things everywhere. A number of telecom operators are currently rolling out networks, but because LoRa operates in the open spectrum you can also set up your own network.

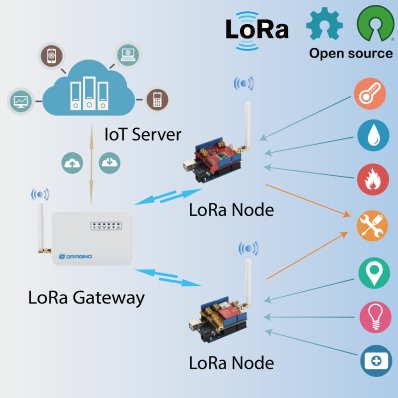

Dragino IoT Kit featuring LoRa® technology will show how to build LoRa network, and how to use the network to send data from a LoRa sensor node to various IoT servers. When used as a private LoRa network, the LoRa gateway will connect your other LoRa nodes up to 500 meters ~ 5km however expect up to 10km range (when in line of sight) when connecting your LoRa node to a LoRa gateway!
In Dragino LoRa IoT Kit, you can get:
- Necessary hardware to start with IoT projects for studying, evaluating.
- Learning the Arduino code and some other mcu knowledge.
- Learning how to use the commonly used sensors.
- Learning the basic knowledge of Linux.
- Learning the basic construction of IoT and how it works.
- Learning the LoRa wireless technology.
- Learning how to build a LoRa network.
- Learning how to use your sensor network to communicate with different IoT servers
Applications:
- Automated Meter Reading;
- Home and Building Automation;
- Wireless Alarm and Security Systems;
- Industrial Monitoring and Control;
- Long range Irrigation Systems;
- GPS tracker,etc.
IoT Kit-v1-XXX-YYY or
IoT Kit-v2-XXX-YYY
XXX: Frequency Band
- 433: For Bands: EU433, CN470
- 868: For Bands: EU868,IN865
- 915: For Bands: US915,AU915,AS923,KR920
YYY: 4G Cellular Option
- EC25-E: EMEA, Korea, Thailand, India.
- EC25-A: North America/ Rogers/AT&T/T-Mobile.
- EC25-AU: Latin America, New Zeland, Taiwan
- EC25-J: Japan, DOCOMO/SoftBank/ KDDI
More info about valid bands, please see EC25-E product page
The only difference between v1 and v2 kit is the LG01 version.

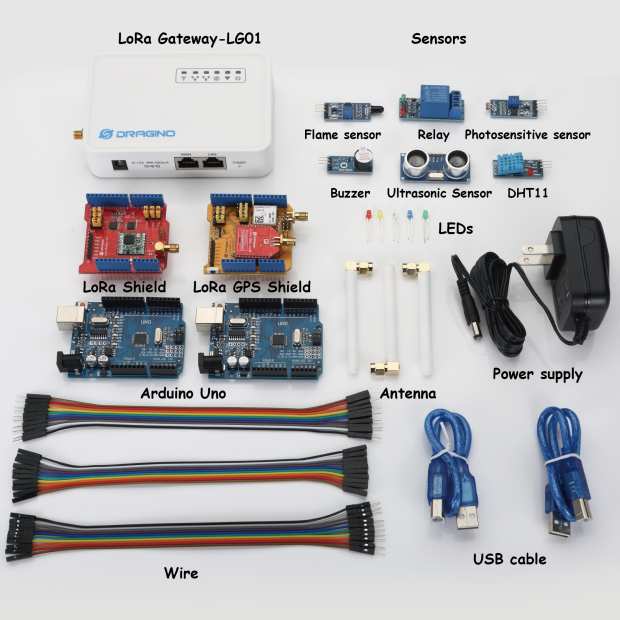

V1 Kit:
- 1 x LG01-P Single Channel LoRa Gateway
- 1 x (LoRa Shield + Arduino UNO)
- 1 x (LoRa/GPS Shield + Arduino UNO)
- 1 x flame sensor
- 1 x Relay
- 1 x photosensitive sensor
- 1 x Buzzer
- 1 x Ultrasonic Sensor
- 1 x DHT11 Temperature and Humidity Sensor
- 10 x dupont wire (male to male)
- 10 x dupont wire (female to female)
- 10 x dupont wire (female to male)
V2 Kit:
- 1 x LG01-N Single Channel LoRa Gateway
- 1 x (LoRa Shield + Arduino UNO)
- 1 x (LoRa/GPS Shield + Arduino UNO)
- 1 x flame sensor
- 1 x Relay
- 1 x photosensitive sensor
- 1 x Buzzer
- 1 x Ultrasonic Sensor
- 1 x DHT11 Temperature and Humidity Sensor
- 10 x dupont wire (male to male)
- 10 x dupont wire (female to female)
- 10 x dupont wire (female to male)
