Intelligent Pressure Transmitter 2000-VALVE

Intelligent Pressure Transmitter 2000-VALVE

The series 2000-valve is an all stainless pressure transmitter fitted in a valve. The transmitter with flush diaphragm can be removed from the process during operation. Zero and span can be adjusted internally. This microprocessor based transmitter can easily be programmed using the three push buttons and display. Pressure measurement mainly for clogging media where a flush diaphragm is needed. For example in the pulp and paper industry. The Transmitter can easily be removed from the process for cleaning and calibration.


Features


. Removable during operation

. All stainless construction

. Strong flush diaphragm

. Easy adjustable using 3 push buttons, without test pressure

. Valves 1” en 1,5”

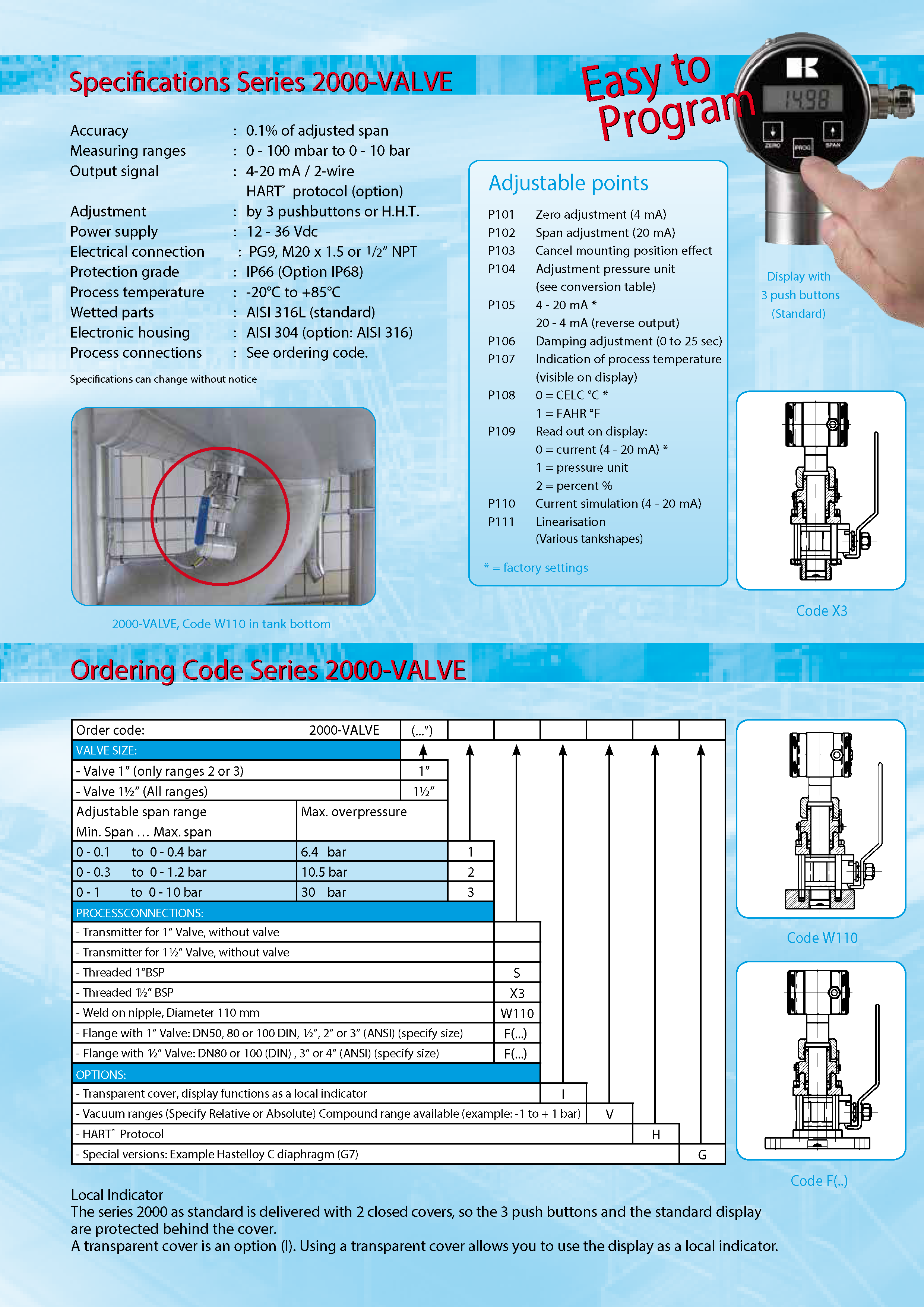

   Download Datasheet
